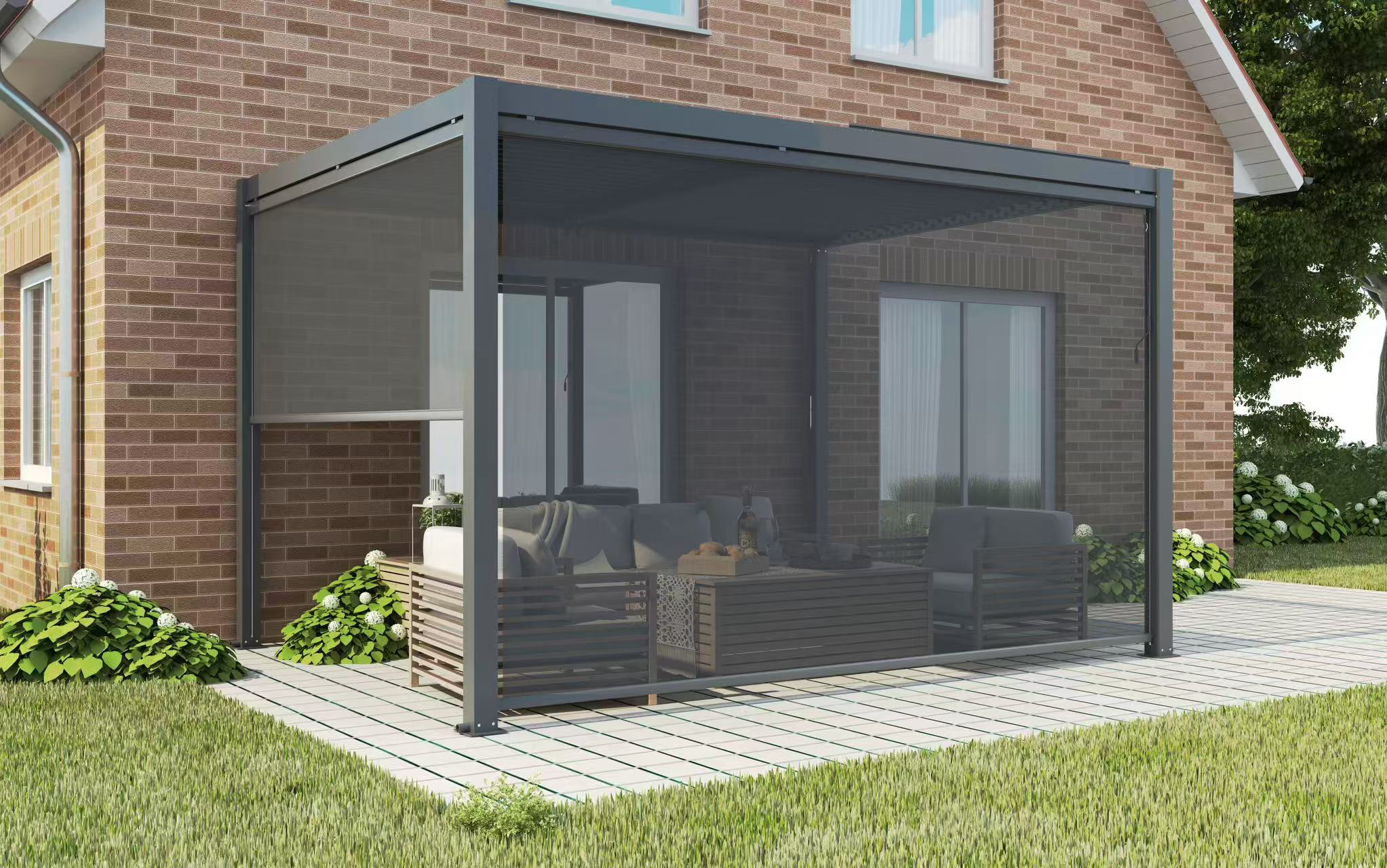

147 Series Louvered Pergola
Premium aluminum louvered pergola system with superior weather protection and modern design
Model & Overview
| Property | Value |
|---|---|
| Model Name | 147 Series Louvered Pergola |
Performance
| Feature | Specification |
|---|---|
| Operation | Manual / Motorized |
| Rain Protection | Fully Waterproof |
| Wind Resistance | Up to Wind Grade 10 (Fully Closed) |
Materials & Finish
| Component | Specification |
|---|---|
| Material | High-Grade Aluminum Alloy (Roof Included) |
| Surface Finish | High-density Powder Coating |
| Available Colors | Monument (Charcoal Grey) / White / Black |
Dimensions & Customization
| Dimension Type | Specification |
|---|---|
| Standard Sizes | 2.5×3m, 3×3m, 3×4m, 3×6m, 4×4m, 4×6m |
| Standard Height | 2.7m |
| Custom Sizes | Available upon request |
Technical Specifications
| Component | Specification |
|---|---|
| Column / Post | 120 × 120 × 1.5 mm |
| Main Beam (Motorized) | 175 × 40 × 1.8 mm |
| Main Beam (Manual with Gutter) | 152 × 90 × 1.6 mm |
| Louver Blade | 147 × 28 × 1.2 mm |
| Gutter (with LED option) | 50 × 55 × 1.4 mm |
| Max. Blade Span | Up to 3.0 m |
Optional Accessories
Enhance your pergola experience with our premium optional accessories:
- Roller Blinds (Manual / Motorized)
- LED Lighting (Integrated into Gutter)
- Remote Control System (for motorized operation)
- Wind Sensors (automatic closing)
- Rain Sensors (automatic closing)
- Heating Systems (for outdoor comfort)
Features & Benefits
The 147 Series Louvered Pergola offers exceptional performance and durability for outdoor living spaces:
- Adjustable louver blades for perfect sun control
- Complete weather protection when closed
- Premium aluminum construction for longevity
- Modern, sleek design enhances outdoor aesthetics
- Low maintenance powder coating finish
- Customizable to fit any outdoor space
- Energy-efficient LED lighting options
Installation & Warranty
Our pergola systems are designed for professional installation and come with comprehensive warranty coverage.
Installation: Professional installation recommended. All necessary hardware and instructions included.
Warranty: 10-year warranty on aluminum structure, 5-year warranty on mechanical components, 2-year warranty on motorized systems.
Maintenance: Minimal maintenance required. Periodic cleaning with mild detergent recommended.
