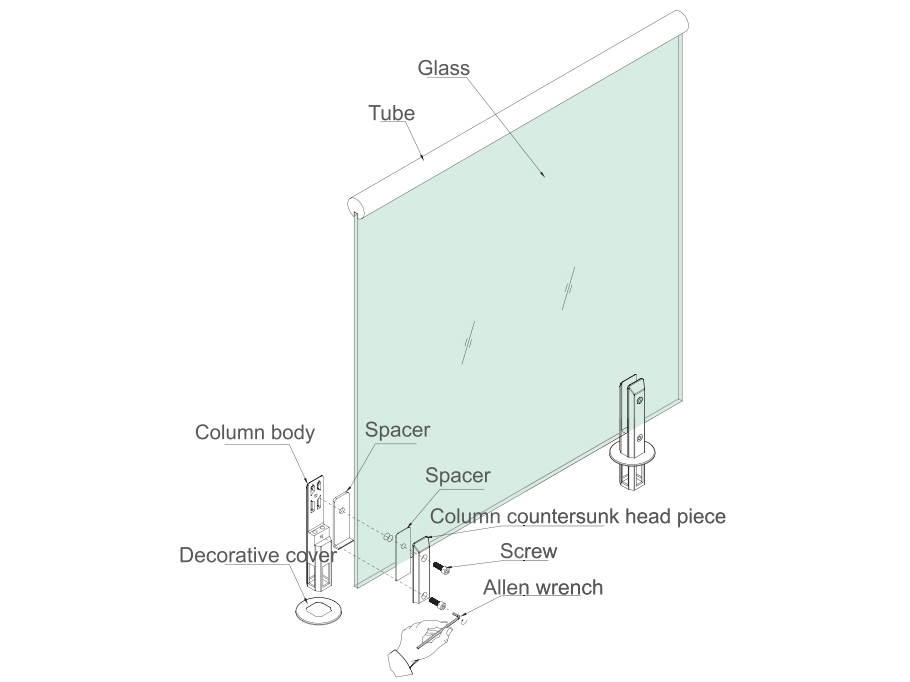

Installation Main Image

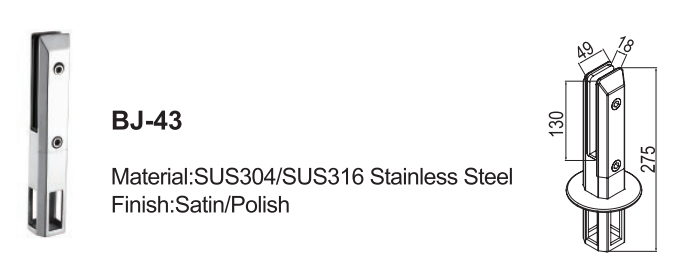

Installation Detail Image

Installation Steps

  1. Fix the first two columns at the same level, then attach a decorative cover properly.
  2. Unscrew the side screws, remove the pads.
  3. Place the pads wrap the edge of the glass.
  4. Put the glass edge (with the wrapped pad) into the glass column holder.
  5. Tighten the screws.

Model: BJ - 43

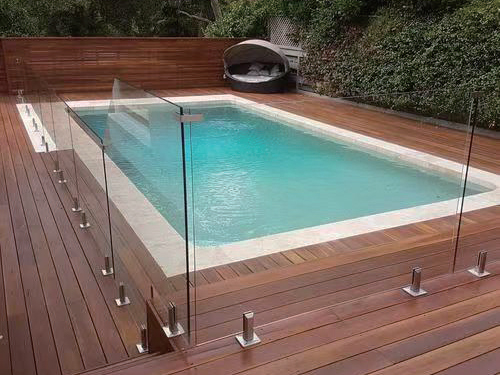

Accessory 2 Image 1
Accessory 2 Image 2

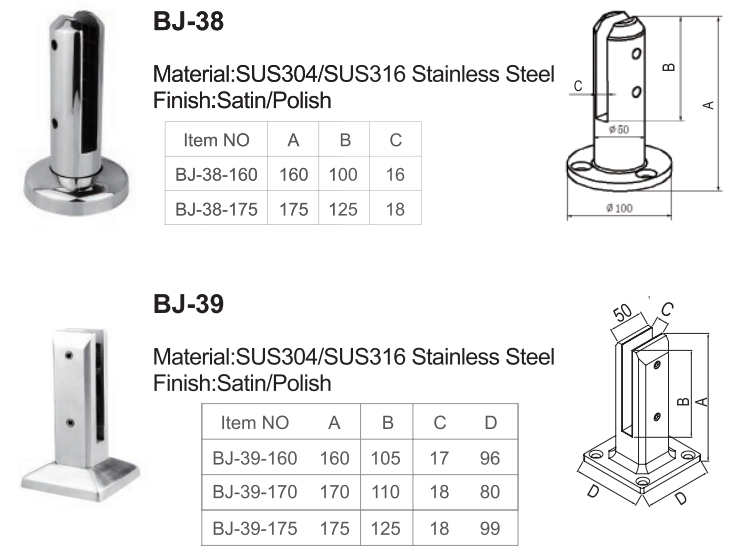

Model: BJ - 38 / 39

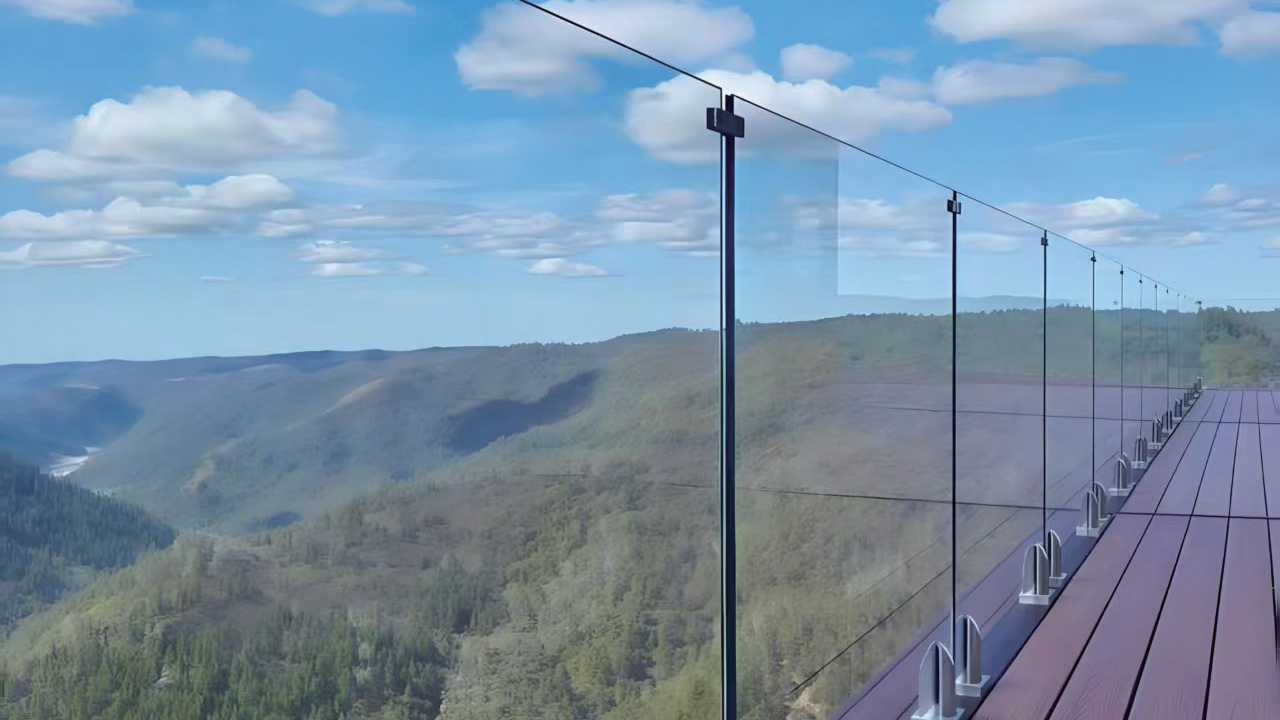

Accessory 3 Image 1
Accessory 3 Image 2

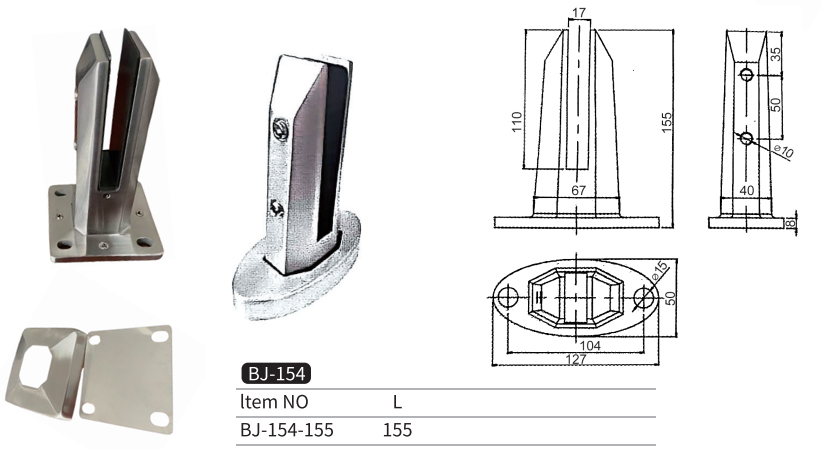

Model: BJ - 154

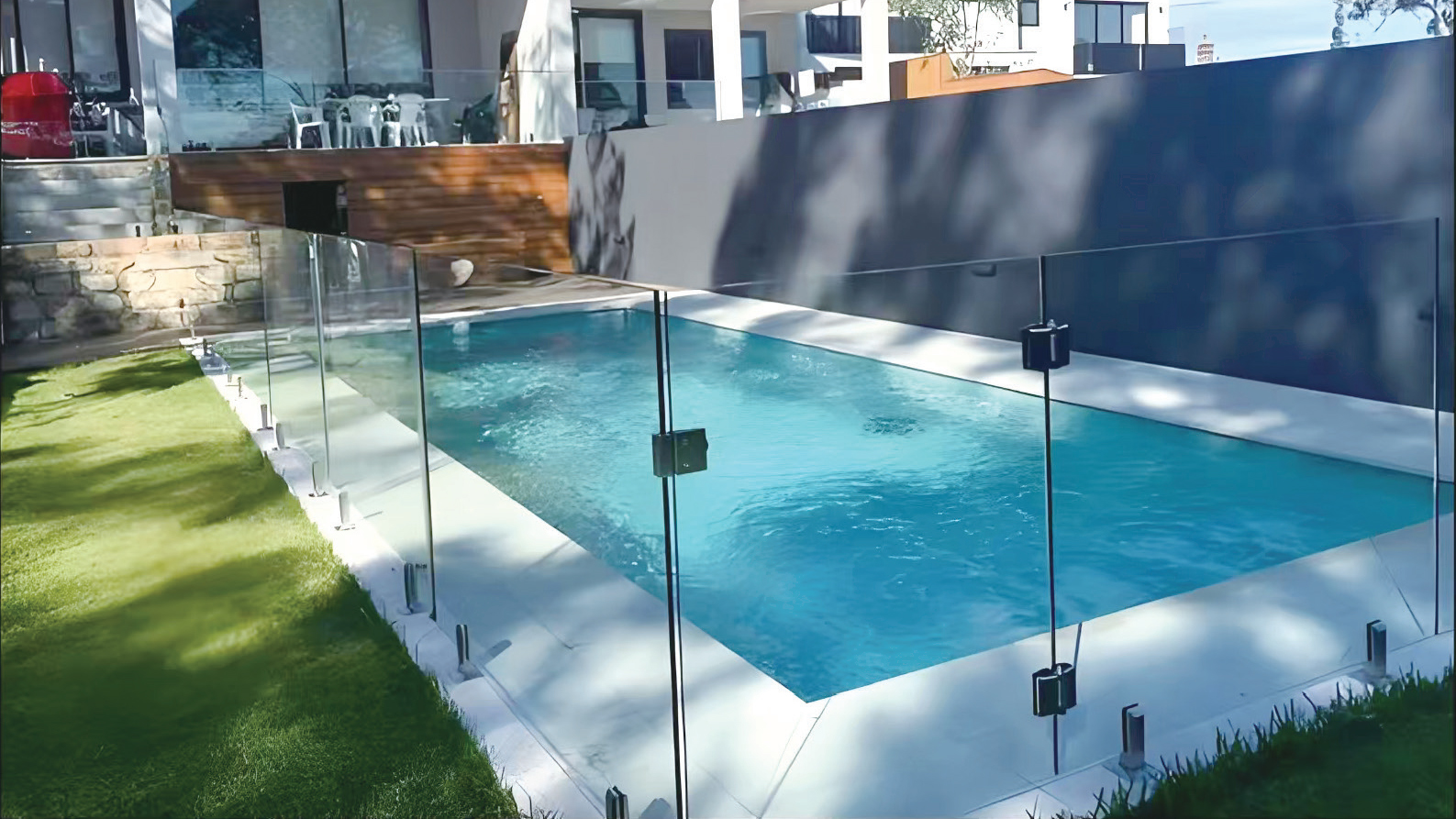

Accessory 4 Image 1
Accessory 4 Image 2

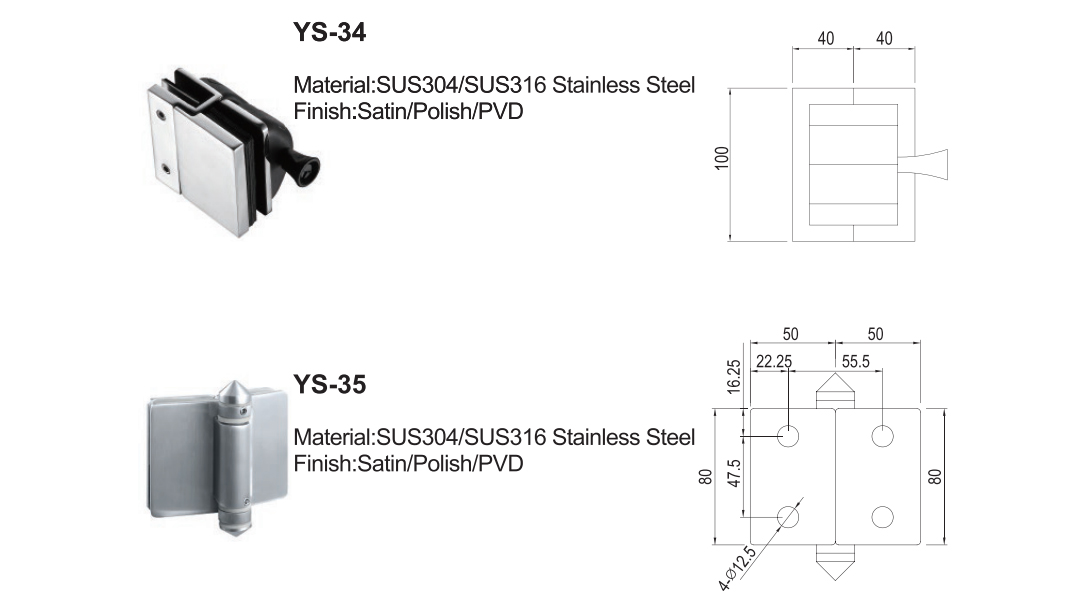

Model: YS - 34 / 35

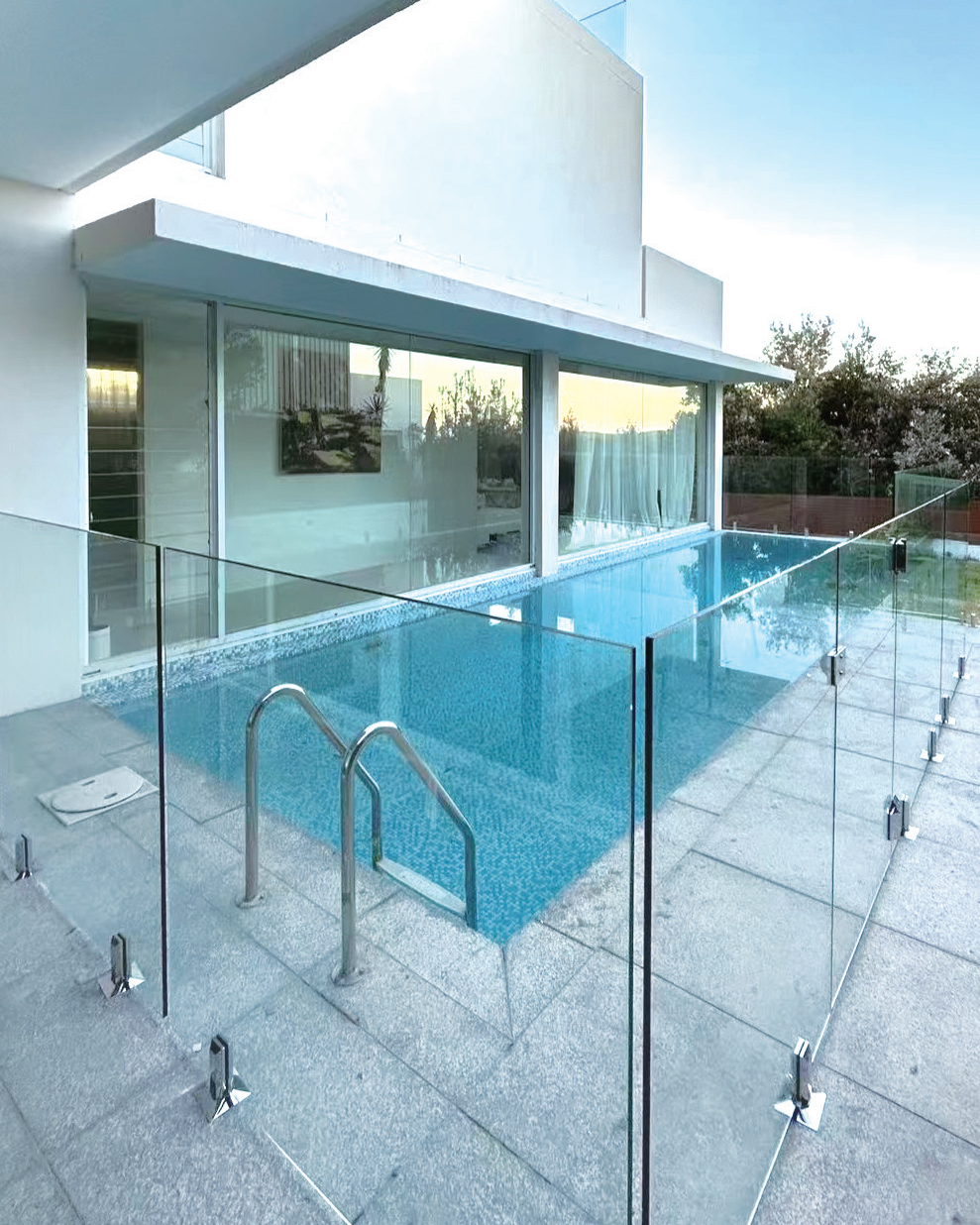

Accessory 5 Large Image

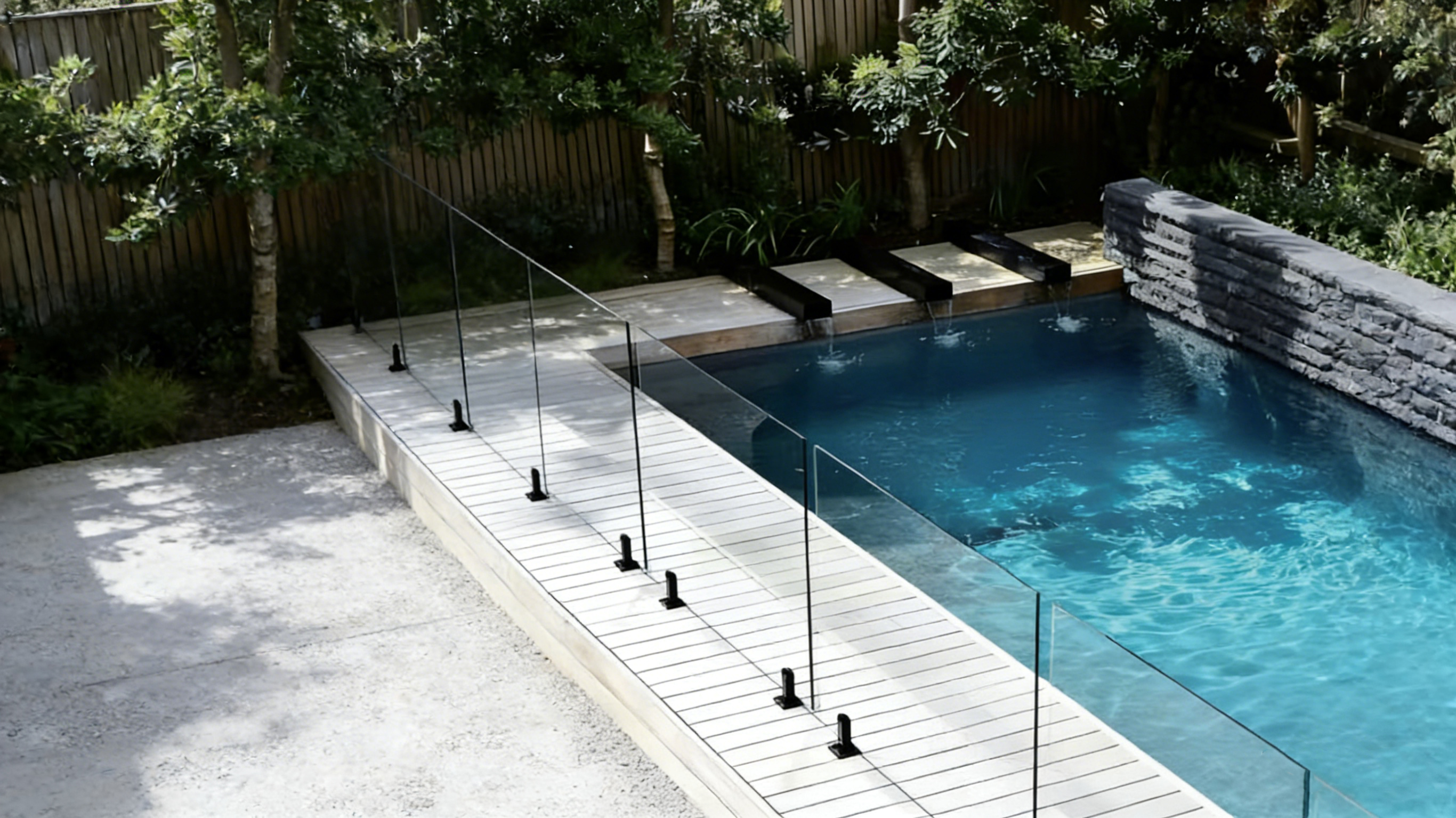

Accessory 5 Small Image 1
Accessory 5 Small Image 2

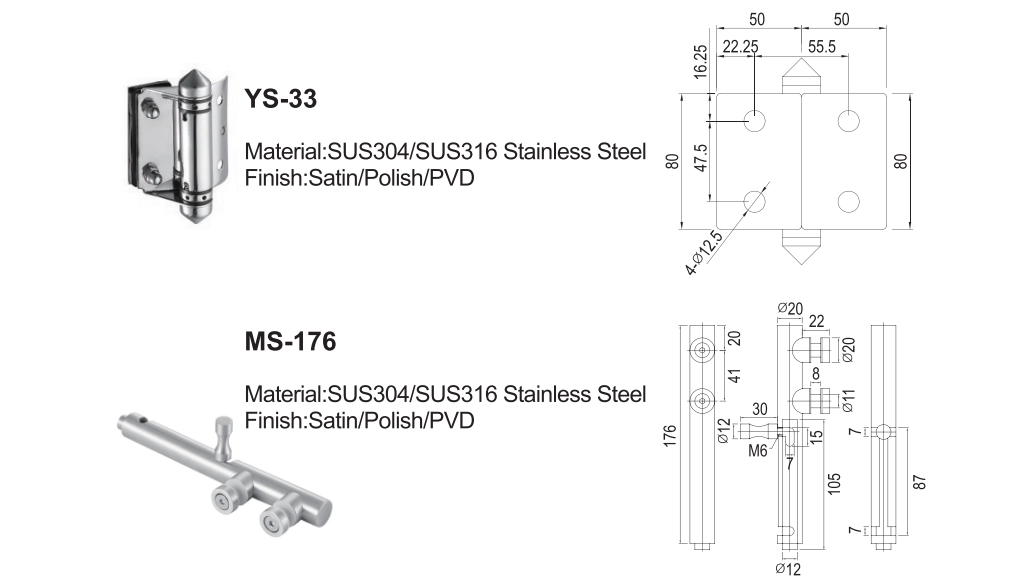

Model: YS - 33 & MS - 176

Accessory 6

Note：

For tailgate glass that carries horizontal load, it is nominal thickness shall be no less than 12mm toughened glass or nominal thickness not less than 16.76mm of tempered laminated glass, if height from lowest point of tailgate glass to one side is above 3m (or between 3m and 5m), tailgate glass shall be toughened glass with a nominal thickness of not less than 16.76mm. When height is over 5m, tailgate glass shall not be used to carry horizontal load (refer to JGJ 113-2009, "architectural glass application technology regulations")

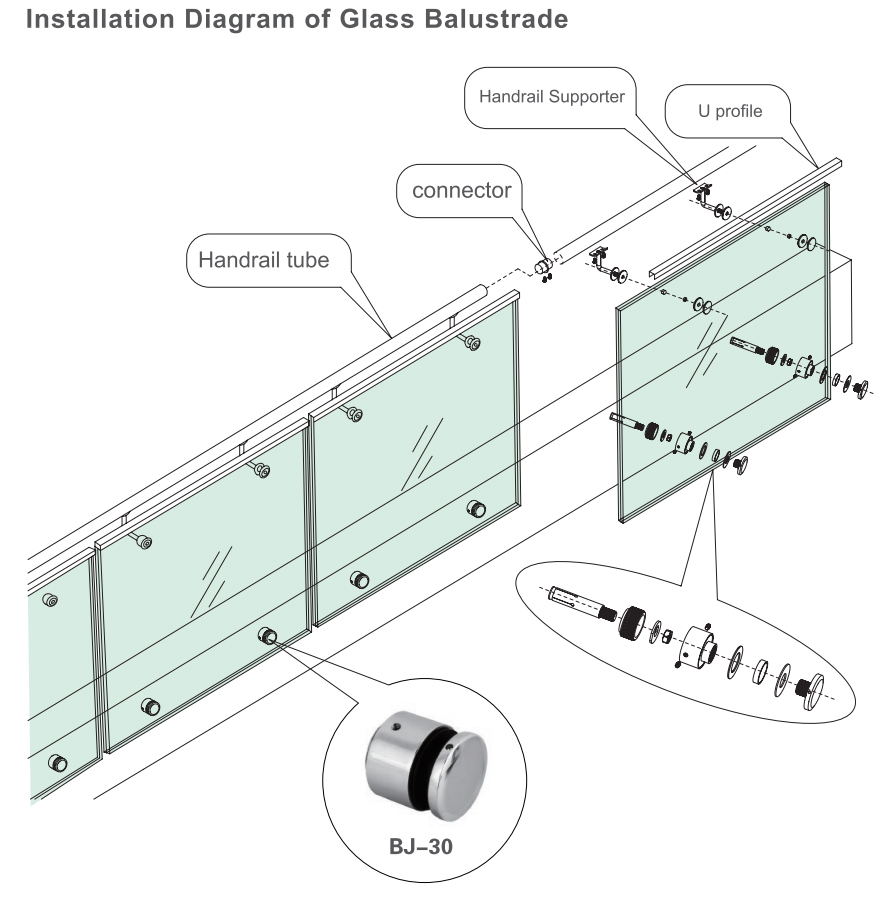

Installation Diagram of Glass Balustrade

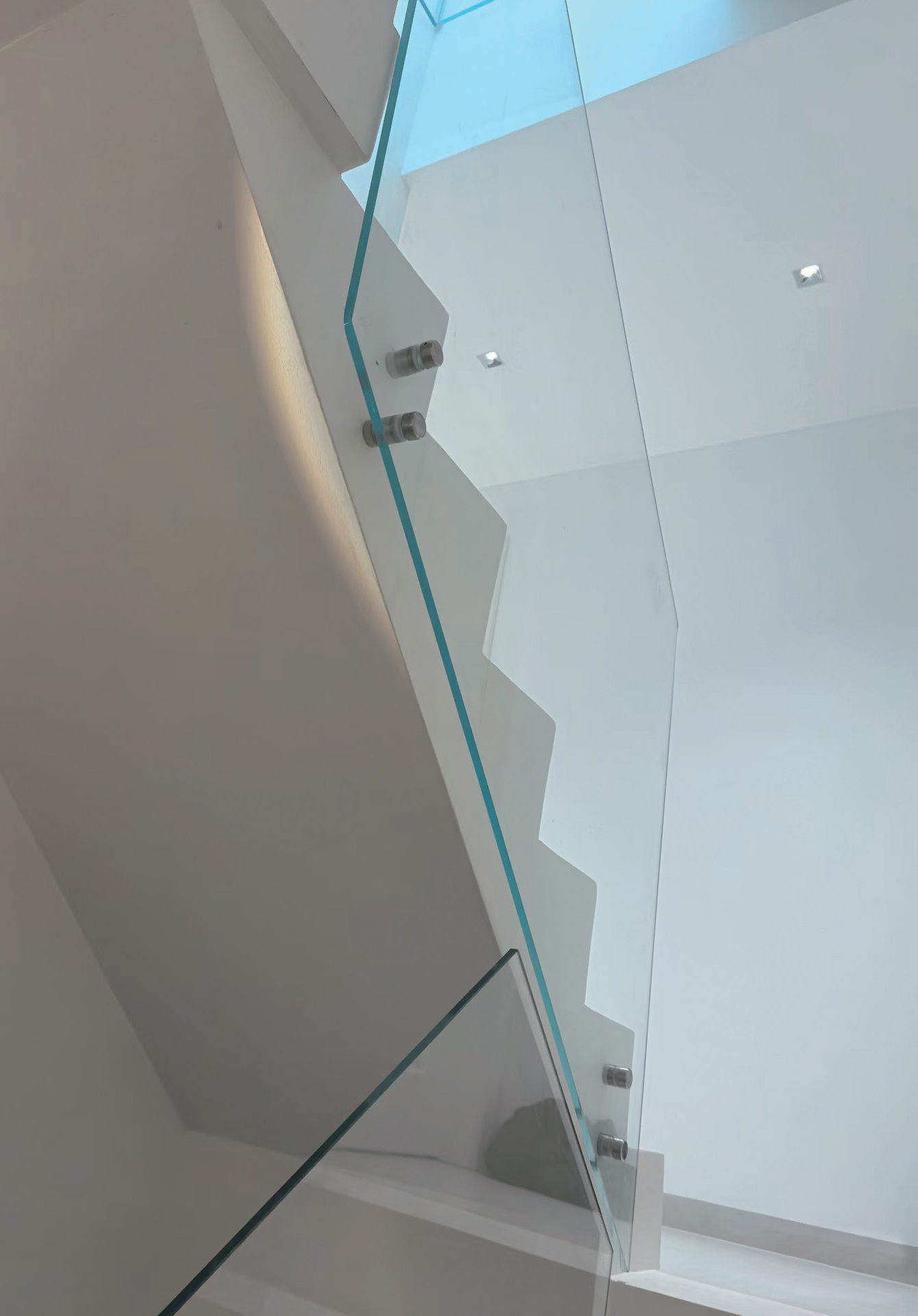

Accessory 7 Large Image

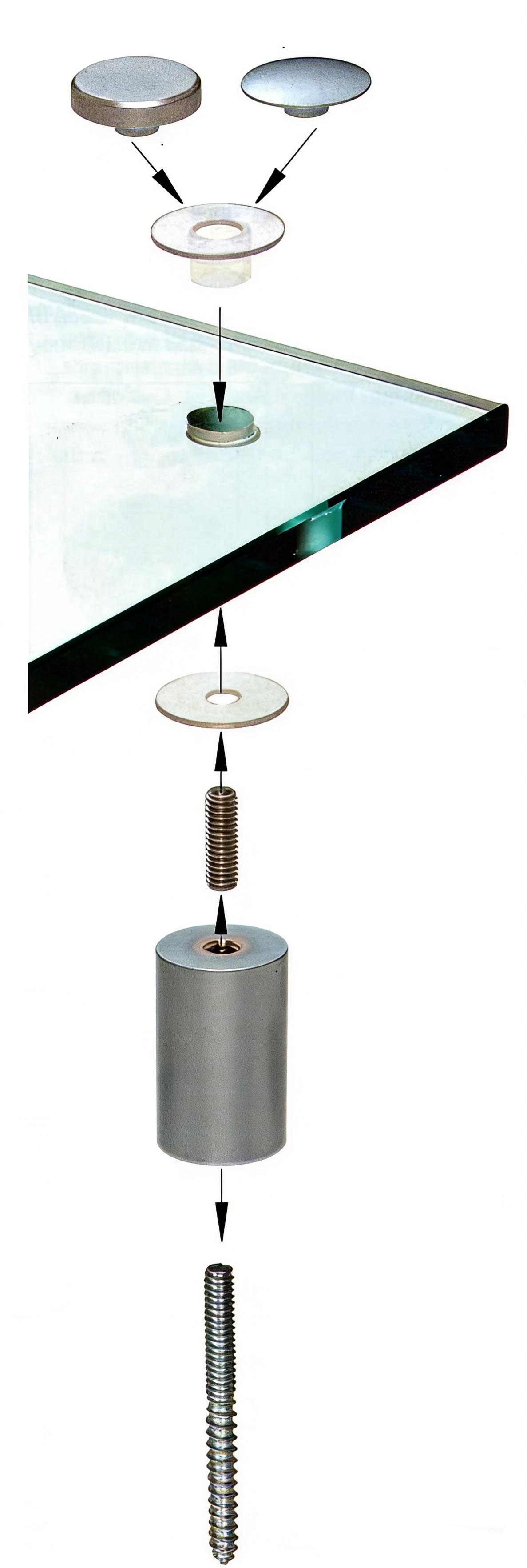

Accessory 7 Small Image 1
Accessory 7 Small Image 2

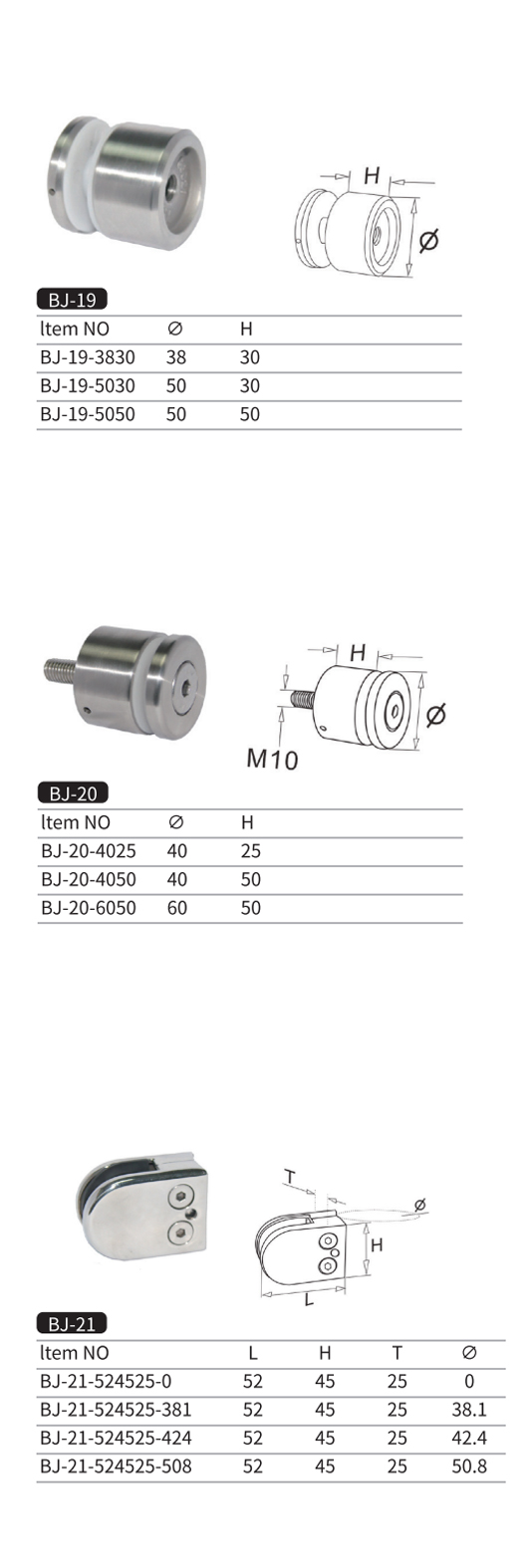

Model: BJ - 19 / 20 /21

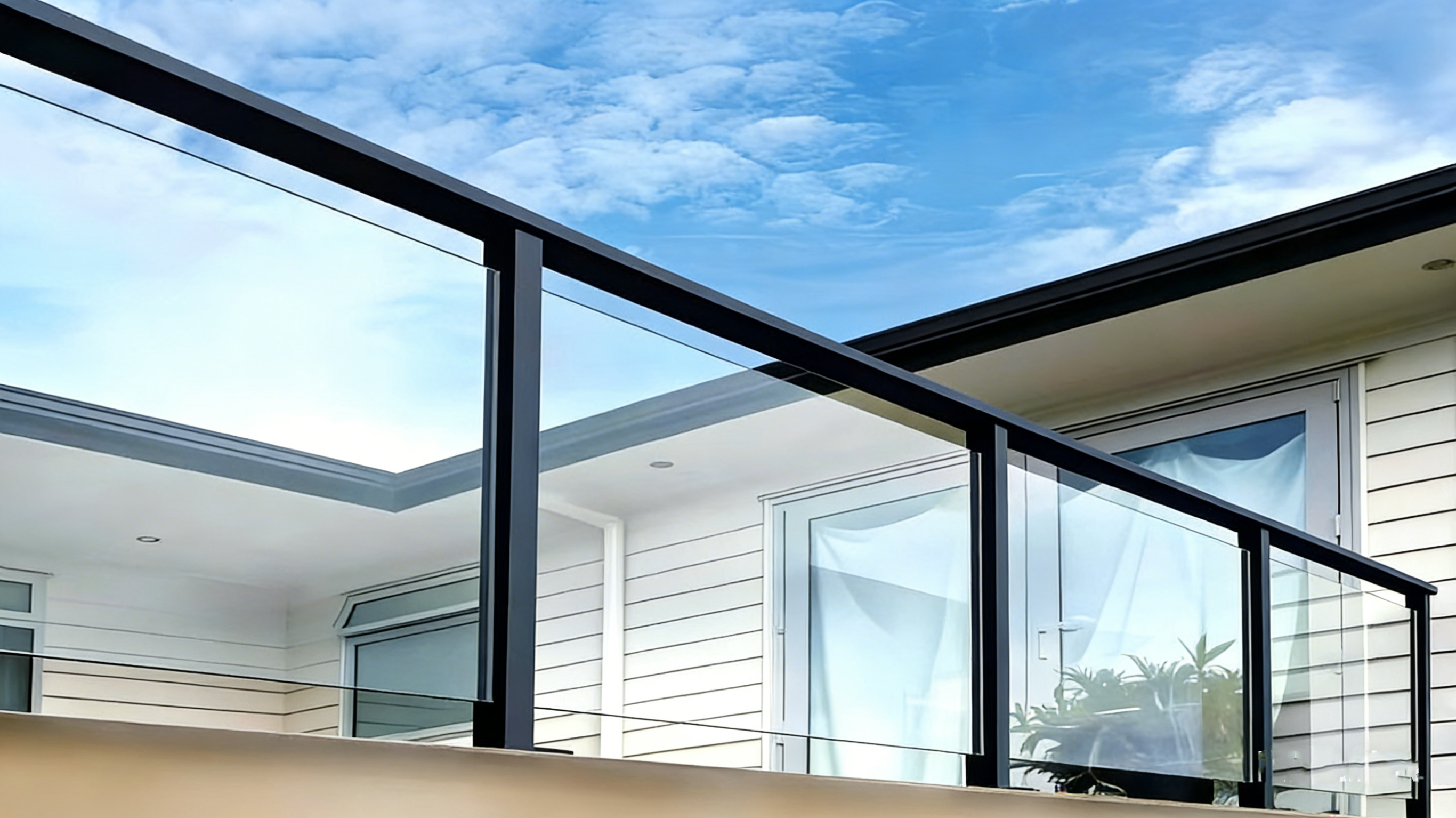

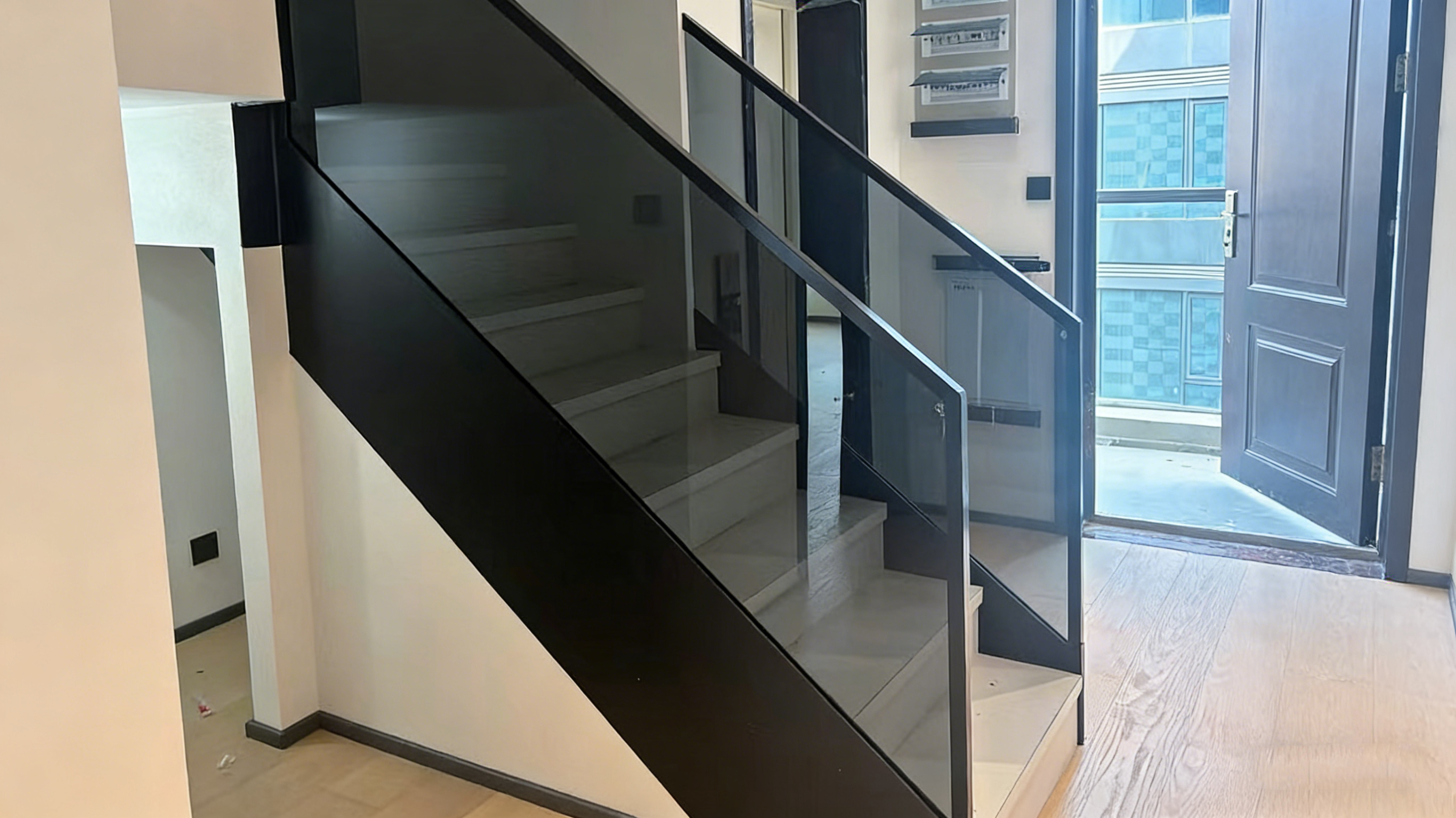

Accessory 8-1

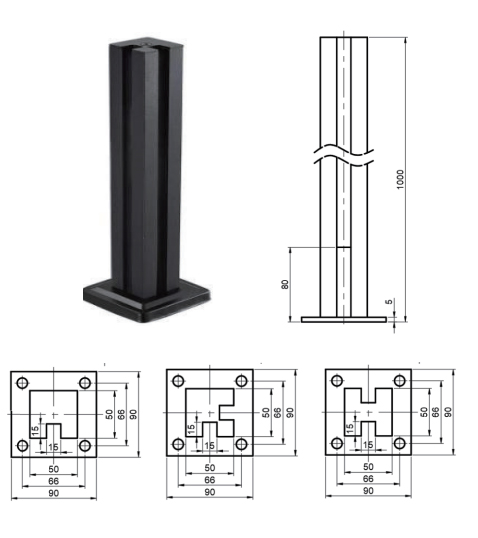

Accessory 8-3
Accessory 8-2
Accessory 8-4

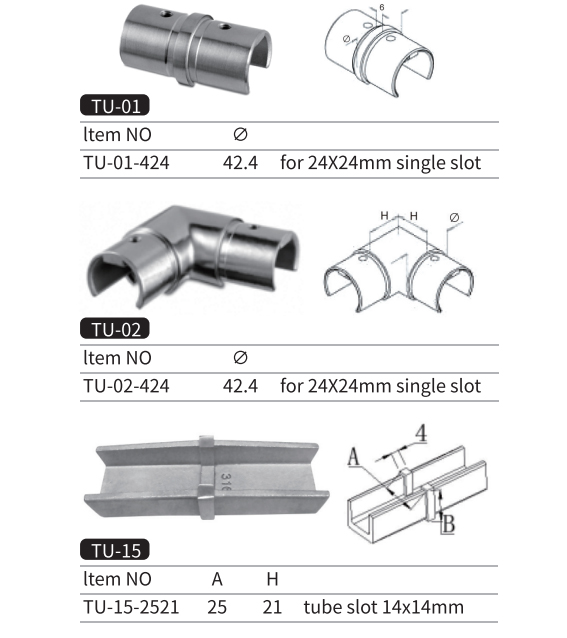

Model: TU - 01 / 02 / 15

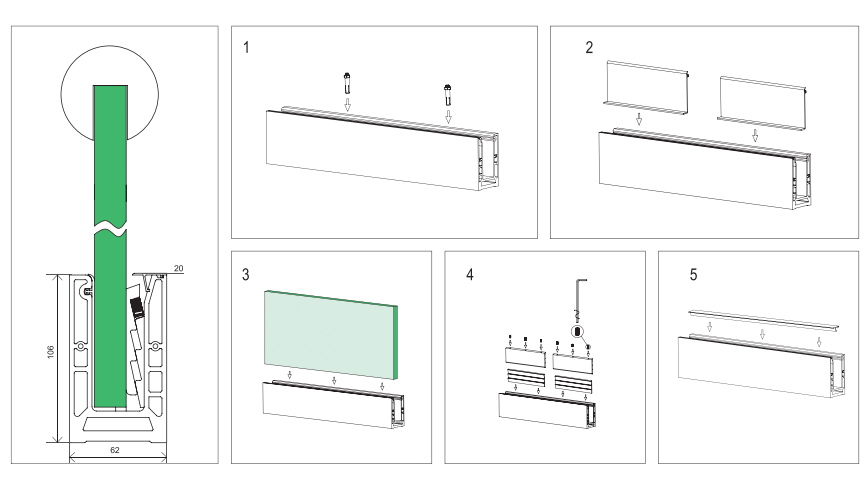

Accessory 9-1
Accessory 9-2

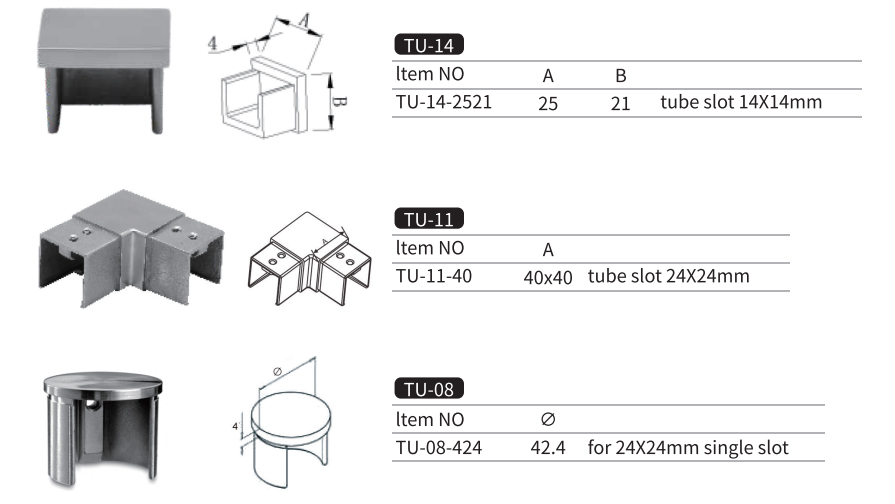

Model: TU - 08 / 11 / 14

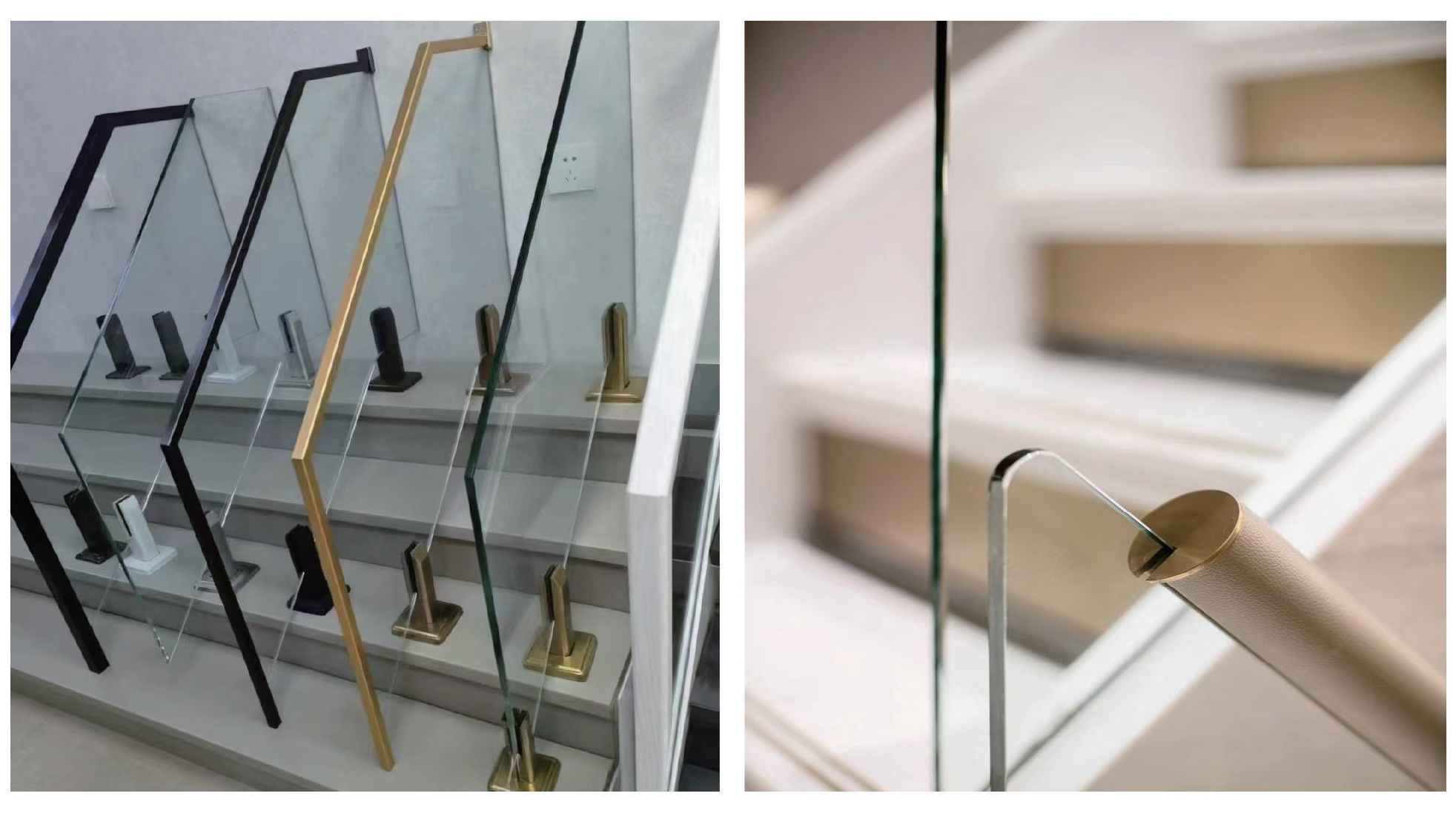

Accessory 10-1

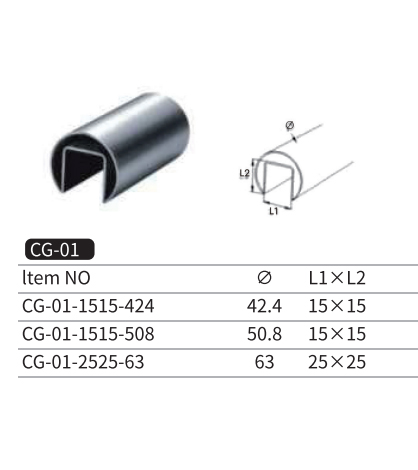

Accessory 10-3
Accessory 10-2
Accessory 10-4

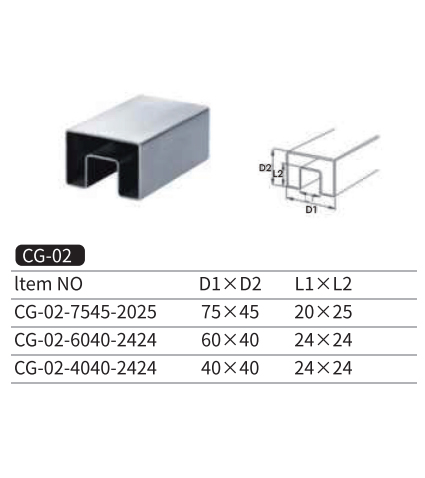

Model: CG - 01 / 02

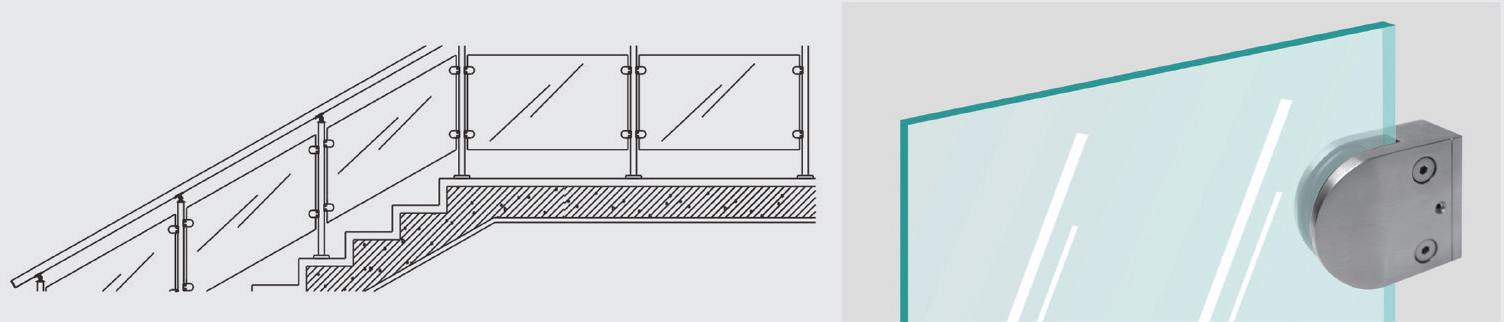

Accessory 11-1
Accessory 11-2

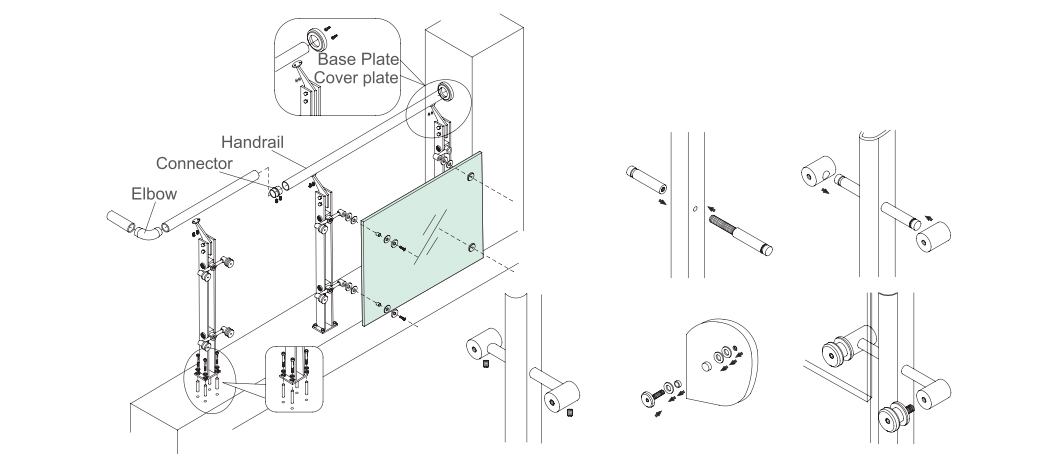

Installation Diagram

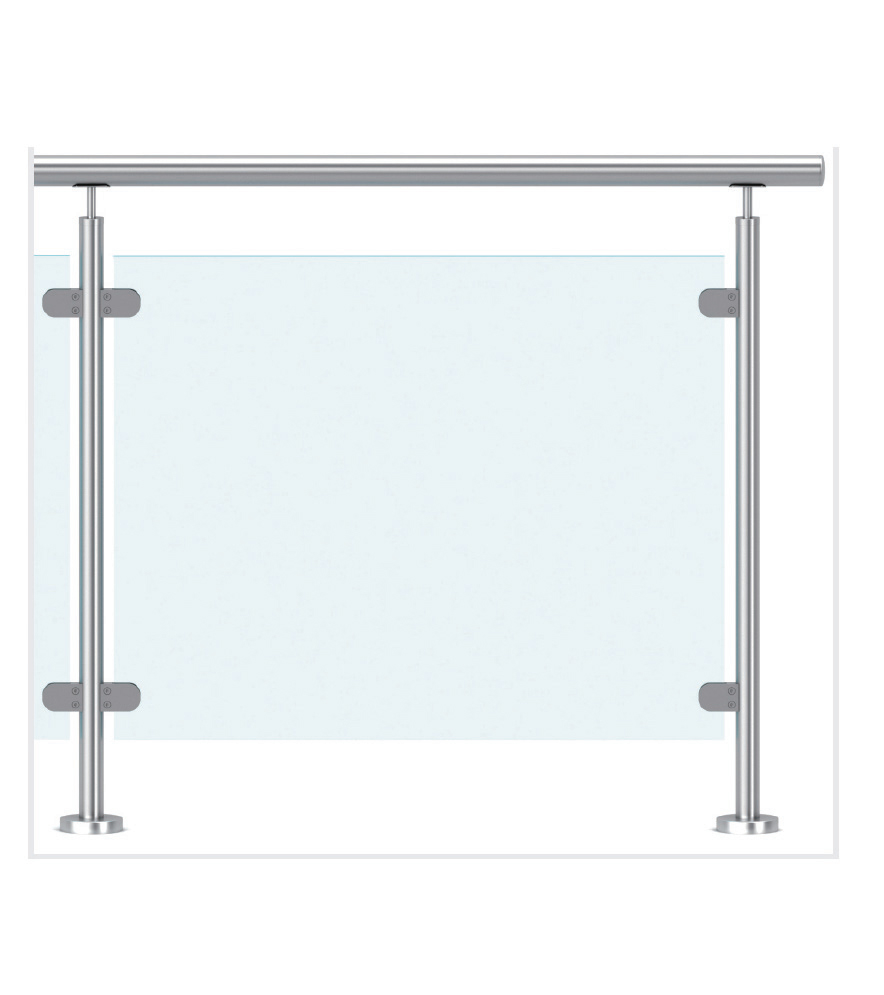

Accessory 12-1
Accessory 12-3
Accessory 12-2
Accessory 12-4

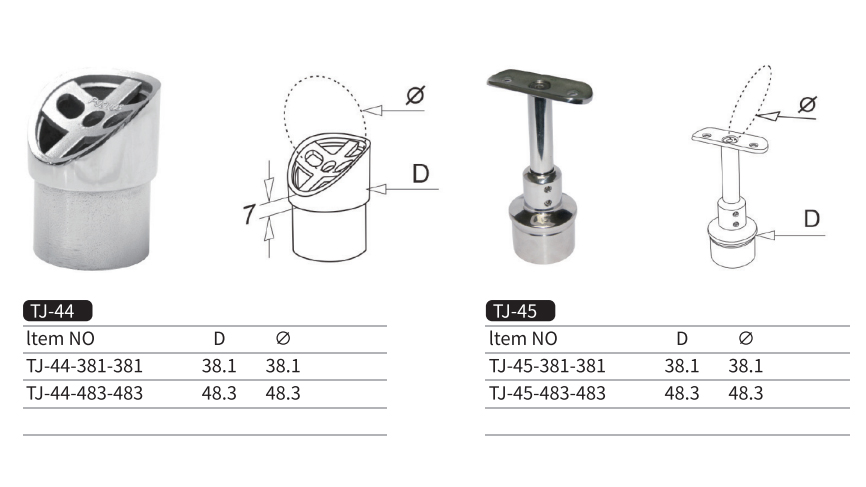

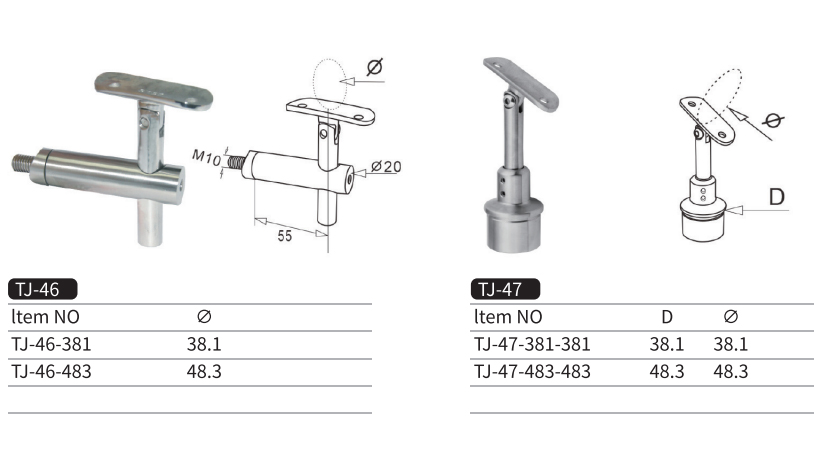

Model: TJ - 44 / 45 / 46 / 47
